Cloud Settings

The Cloud Settings pages are opened automatically during the setup process after entering your cloud provider’s credentials, but you can also edit cloud settings in one of the following ways:

Note: If you are using AWS Marketplace and want to change these settings after configuring your environment, please contact support@incredibuild.com.

Coordinator Settings

This page is only visible when installing Incredibuild Cloud directly from AWS marketplace. You define the username and password that will be needed to access the Coordinator that will be created for you on the cloud.

Network Settings

This window has a few different settings depending on your cloud provider. The example shown below is for AWS.

Parameter Description

Cloud Region

The region (defined by your cloud provider) where the VMs will run. In this region, the pool and additional Helper VMs will be created. It is recommended to select the same region for the Initiating VMs and the pool and Helper VMs, in order to avoid network latency.

Subscription

[Azure only] Your Azure subscription name.

Resource Group Name

[Azure only] All the resources that are created by Incredibuild Cloud for build acceleration, belong to one resource group. You can change the default name of this resource group before activating the solution.

If you do not add a customized name for the resource group, Incredibuild Cloud will use a default value, which includes your Coordinator ID.

Use Private Network

Use a Virtual Private Network on the cloud for launching and running Helper VMs, thus adding another layer of security for your transferred data. To use this option, you must already have a private network on your cloud provider. This option can sometimes reduce data transfer speeds.

Your Coordinator host should be connected to the private network as follows:

  • If your Coordinator is not on the cloud, the Coordinator host must be connected to the cloud private network via VPN.

  • If your Coordinator is on the cloud, its host must have access to the selected subnet.

Once you enable this option, you will need to enter your VPC and one or more subnets.

Cloud Region

The region (defined by your cloud provider) where the VMs will run. In this region, the pool and additional Helper VMs will be created. It is recommended to select the same region for the Initiating VMs and the pool and Helper VMs, in order to avoid network latency.

Coordinator Ports

These settings are only visible when installing directly from AWS marketplace. They are the ports required to communicate with your Coordinator.

Use your own Security Group

Incredibuild's permissions and activities in your cloud account are limited to a Security Group. If you do not select this option, we create a Security Group for you and open the required ports. If you select this option, you can use your own Security Group, however you will need to manually open some ports to facilitate communication with items in the Security Group. For details, see Using your Own Security Group below.

Note: In GCP, this setting is called a Firewall Rule, and no selection is required (just toggle on or off).

Resource Management Settings

Parameter Description

Coordinator

Default Virtual Machine Type

This setting is only visible when installing directly from AWS marketplace. It is the type of the VM that will serve as your Coordinator. We recommend leaving the default setting. If you need to change this machine after creating your environment, see Changing your Coordinator Machine.

Helpers

Use Spot Instances (called Preemptible for GCP)

Enable Spot instances to get access to unused cloud compute at deep discounts. For details, see Enable Spot Instances.

Default Virtual Machine Type

The type of the VMs that will serve as Helper Agents. We recommend using machines with at least 8 or 16 cores. If you are using Unreal Engine, your VMs should have at least 100GB HDD with 70 GB dedicated for cache.

Disk Type

The disk type that will contain your virtual machines.

Total Storage Size

The storage size on each virtual machine.

VM Idle Timeout (seconds)

The number of seconds that need to pass after a VM has finished executing a task, before it is automatically deactivated. When deactivated, the VM will return to the pool if it is not full, otherwise it will be terminated. The default is 500 seconds. Values can be 300-43200.

VM Role (AWS only)

If your organization requires it, you can specify a custom VM role that will be attached to your cloud VMs. You also need to modify the JSON that provides Incredibuild with permissions to your AWS account.

You can specify more than one role in the JSON for convenience, however you can only specify one role at a time that will attached to the VMs in this user interface.

Pool Settings

Max Number of Cores

The maximum number of VMs that can be used to run your builds.

VM Pool Size

Incredibuild maintains a pool of machines in a Sleep state to speed up the process of ramping up machines when they are needed.

The number of VMs that will be created for Incredibuild Cloud pool, and will be moved automatically into a Sleep state. After their creation, these VMs are not automatically used by the Coordinator, but they can start to work immediately as Helpers upon the Coordinator request.

The value cannot be higher than Max Number of VMs.

Fallback Machine Types (AWS Only)
Allow fallback to On-Demand machines

If you are using Spot machines, you can also enable Incredibuild to use On-Demand (non-spot) machines if no Spot machines are available using this checkbox.

Let Incredibuild Find Machines

If your cloud provider runs out of the Default Machine Type, Incredibuild will use other machine types. We only try to find machines that are in the same family type as your Default Machine Type. Generally the prices of these machines are similiar to the price of your Default Machine type, however we cannot control the prices in your cloud provider.

Define your Own Fallback Machine Types

If your cloud provider runs out of the Default Machine Type, Incredibuild will use other machine types. You can limit the types of machines by specifying the machine types to use here.

Fallback Machine Types

For AWS Only. You can specify additional types of VMs to act as fallbacks if your cloud provider runs out of the first type in your region. In GCP and Azure, fallbacks are managed on their side automatically.

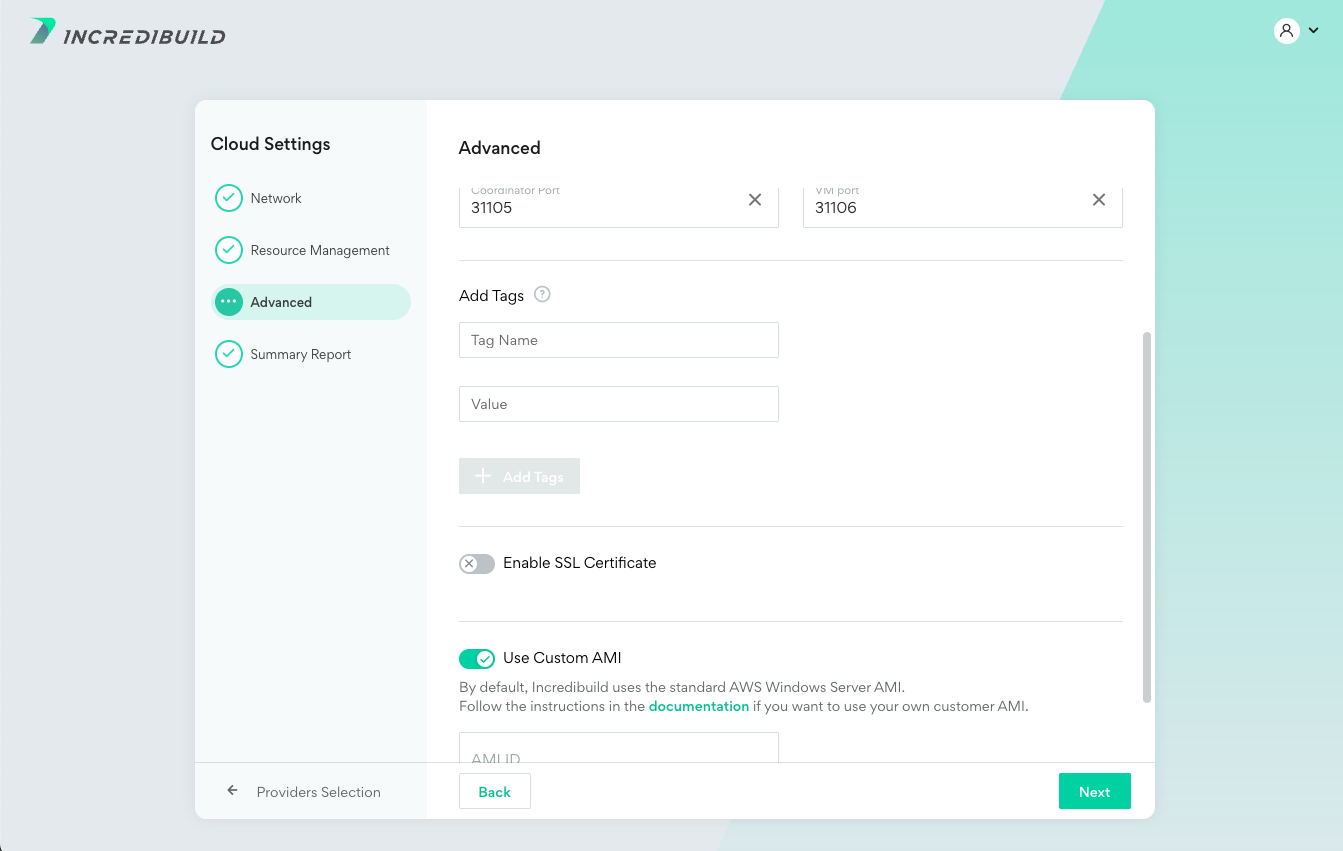

Advanced Settings

Parameter Description

Enable SSL Certificate

When using Incredibuild 10, you can enable SSL for communication between your Incredibuild components.

Upload an SSL certificate and key to place on your cloud agents. You will need to enable SSL on your Coordinator as well.

This is not supported for AWS marketplace.

Add Tags

[Optional] Custom tags that will be added automatically to the following resources, which that are created by Incredibuild on your cloud provider:

  • AWS: Virtual Machines, VPCs, Subnets, Roles

  • Azure: Virtual Machines, Disk Drives. Network Interfaces, Public IP Addresses

Notes:

  • You can add up to 5 custom tags, by defining for each tag a name:value pair.

  • For more information on resource tagging in AWS, see the AWS documentation.

  • In AWS, you can use cost allocation tags to find your machine cost.

  • All Azure cloud resources that are created by Incredibuild include "cloud" in their name.

Notification Email

This email will be used by Incredibuild for confirmations, notifications, and assistance. This email will not be used for promotions or marketing.

Coordinator Port

Used by the VMs that are running as Helpers on the cloud to communicate with the Coordinator. This must be the same as the Coordinator Service port in the Coordinator Settings.

The default is 31105.

Verify that this port is open for external traffic in your organization firewall.

VM Port

The first port of the port range that is assigned to the cores of a VM. Each participating core needs a port to connect to the Coordinator. Consecutive port numbers are assigned to additional VMs.

When Incredibuild creates the VMs on the cloud, it automatically opens available ports in the range.

Incredibuild Cloud does not check the availability of the ports. If the ports in your port range are already in use by your system, the VM cores will not be able to participate in the solution.

Using your Own Security Group

Note: In GCP, this setting is called a Firewall Rule, and no selection is required (just toggle on or off).

Incredibuild's permissions and activities in your cloud account are limited to a Security Group. If you do not select this option, we create a Security Group for you and open the required ports. If you select this option, you can use your own Security Group, however you will need to manually open some ports to facilitate communication with items in the Security Group.

  • If you are using Incredibuild for Windows, you need to open the Coordinator Port and the VM Ports you specified in the Advanced tab of the Settings wizard. Additionally, you need to open subsequent VM Ports depending on the number of cores in your default machine type. So, if you default machine type has 32 cores, and your VM Port is 31106, you need to open ports 31106-31138 in addition to the Coordinator port (31105 by default).

  • If you are using Incredibuild for Linux, you only need to open the Coordinator and VM Ports you specified in the Advanced tab of the Settings wizard.

In all cases, your Cloud Helper VMs must be have outbound internet access to work with Incredibuild's cloud service.
